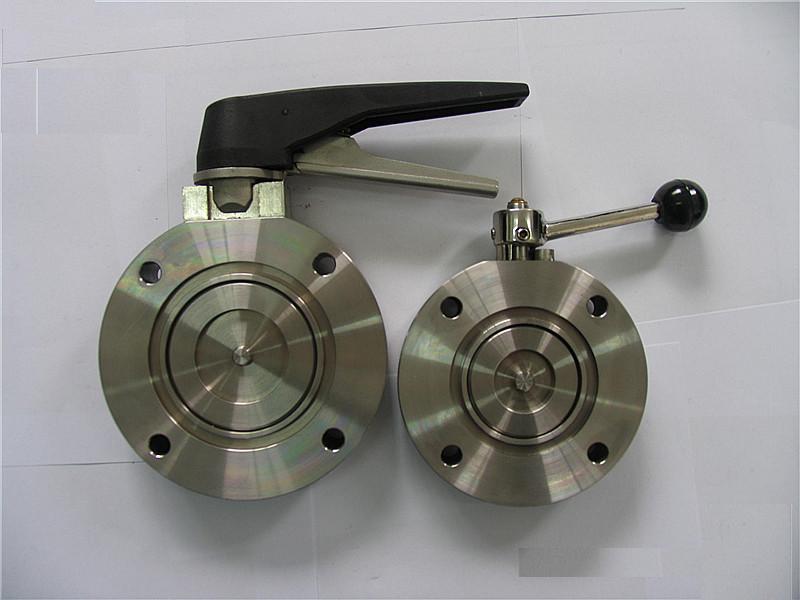

手動高真空蝶閥

產品名稱：日韓豐滿少婦無碼內射:手動高真空蝶閥
產品型號：GI
產品口徑：DN40-1200mm
產品壓力：1.6MPa
產品材質：碳鋼、不銹鋼
聯系電話：021-51061127
聯系傳真：021-51062214
Email：fashengfamen@126.com
聯系人：陳云非
聯系手機：18217570461
QQ：203398752
公司名：上海閥盛閥門制造有限公司
帳號：03416900040048386
開戶行：農行上海水清南路支行
售后承諾：質保一年，質量三包：包修、包換、包退。

上海閥(fa)(fa)盛閥(fa)(fa)門制(zhi)造有限公司主要生產手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)，可提供(gong)手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)價格，手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)說(shuo)明書，手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)實物圖，手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)結構圖，手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)外(wai)形尺寸，手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)執行標(biao)準(zhun)，手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)工(gong)作原理，手(shou)動(dong)(dong)高(gao)(gao)(gao)真(zhen)空(kong)(kong)蝶(die)(die)(die)閥(fa)(fa)作用特點。

手動高真空蝶閥主要技術性能:

適用范圍：Applicability	105～1.3×10-4Pa
閥門漏率：Valve Leak Rate	≤1.3×10-4Pa.L/S.
適用溫度：Applicable Temperature	-25～+80℃(丁腈橡膠) -30～+150℃(氟橡膠)
氣源壓力：Mains Voltage	0.4～0.6MPa
安裝方向：Mounting Direction	任意

手動高真空蝶閥主要零件材料:

閥(fa)體、閥(fa)蓋、閥(fa)桿：碳鋼或不銹鋼

密封件：丁腈橡膠、氟(fu)橡膠

手動高真空蝶閥外形及連接尺寸: 單位：(mm)

Model 型號	DN	D	Do	D1	B	H	B1	L	n-φc
GI-40	40	85	70	44	22	162	90	104	4-φ7
GI-50	50	110	90	55	22	175	90	104	4-φ7
GI-65	65	125	105	70	26	198	102	140	4-φ9
GI-80	80	145	125	85	30	208	102	140	4-φ9
GI-100	100	170	145	105	30	220	102	140	4-φ12
GI-150	150	220	195	156	35	272	115	164	8-φ12
GI-200	200	275	250	208	40	330	205	190	8-φ12
GI-250	250	330	300	258	45	335	205	190	8-φ14
GI-300	300	380	350	308	55	426	152	247	8-φ14
GI-400	400	500	465	410	60	520	180	308	8-φ18
GI-500	500	600	565	510	80	643	220	378	12-φ18
GI-600	600	710	670	610	100	760	270	524	12-φ21
GI-800	800	920	815	815	130	962	320	648	20-φ21
GI-1200	1200	1440	1280	1280	150	1360	385	1480	36-φ19
