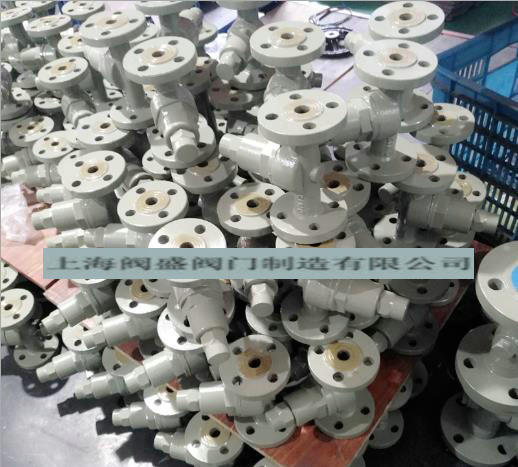

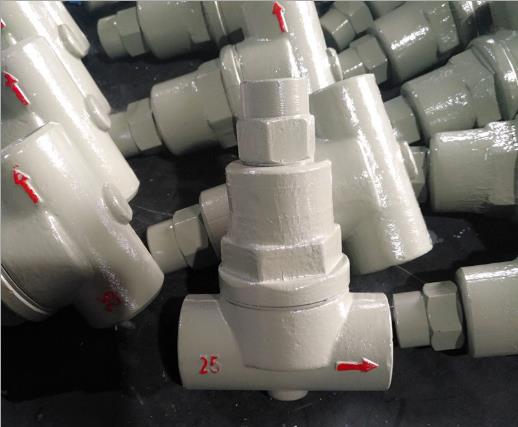

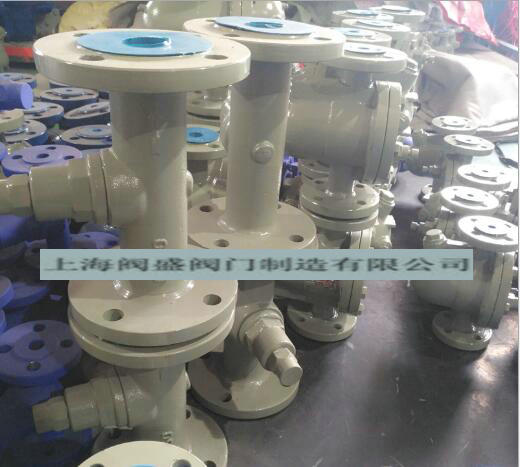

可調雙金屬片疏水閥
- 產品名稱:日韓豐滿少婦無碼內射:可調雙金屬片疏水閥
- 產品型號:CS47H
- 產品口徑:DN15-50mm
- 產品壓力:1.6-4MPa
- 產品材質:鑄鋼、不銹鋼
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上(shang)海閥(fa)(fa)(fa)盛閥(fa)(fa)(fa)門制造有限公司主要生產可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa),可(ke)(ke)(ke)(ke)提供可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)價格,可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)說明書,可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)實(shi)物圖,可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)結構(gou)圖,可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)外形尺寸,可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)執行(xing)標準,可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)工(gong)作(zuo)原理(li),可(ke)(ke)(ke)(ke)調(diao)(diao)雙(shuang)(shuang)金(jin)(jin)(jin)屬(shu)片(pian)(pian)疏(shu)(shu)(shu)(shu)水閥(fa)(fa)(fa)作(zuo)用特(te)點。
型號Type/項目Item | CS17H-16C CS47H-16C CS67H-16C | CS17H-25 CS47H-25 CS67H-25 | CS17H-40 CS47H-40 CS67H-40 | 單位 Unit |
公稱壓力 Nominal Pressure | 1.6 | 2.5 | 4.0 | Mpa |
殼體試驗壓力 Shell Test Pressure | 2.4 | 3.8 | 6.0 | |
最高工作壓力 Max | 1.6 | 2.5 | 4.0 | |
最高工作溫度Max Works Temperature | 203 | 220 | 247 | ℃ |
最高允許溫度Max Vouchsafement Temperature | 425 | 425 | 425 | |
工作介質 Working Medium | 蒸汽、凝結水Stemam |
可調雙金屬片疏水閥主要零件材料:
型號Type/項目Item | CS 17 H、CS47H、CS 67 H 16 C、25C、40 C |
閥體Body | 碳鋼Carbon Steel |
閥蓋Donner | |
閥芯 | 不銹鋼Atainless Steel |
閥座Seat | 不銹鋼Atainless Steel |
熱敏元件 | 熱雙金屬片 |
過濾器Percolator | 不銹鋼Atainless Steel |
可調(diao)雙金(jin)屬(shu)片疏水(shui)閥主要外(wai)形及連接尺寸:
型號 Type | DN | 螺紋連接 | 承接焊連接 | 法蘭連接 | ||||||||||||||
RC | L | H | W | L | H | W | d’ | T | L | H | D | K | d | C | F | N-φ | ||
(mm) | (mm) | (mm) | ||||||||||||||||
CS17H-16C CS47H-16C CS67H-16C | 15 | 1/2 | 100 | 92 | 82 | 100 | 92 | 82 | 22 | 12 | 150 | 92 | 95 | 65 | 45 | 14 | 2 | 4-14 |
20 | 3/4 | 100 | 92 | 82 | 100 | 92 | 82 | 27 | 12 | 150 | 92 | 105 | 75 | 55 | 14 | 2 | 4-14 | |
25 | 1 | 100 | 92 | 82 | 100 | 92 | 82 | 34 | 12 | 160 | 92 | 115 | 85 | 65 | 14 | 2 | 4-14 | |
32 | 11/4 | 165 | 140 | 115 | 165 | 140 | 115 | 42 | 13 | 200 | 140 | 135 | 100 | 78 | 16 | 2 | 4-18 | |
40 | 11/2 | 165 | 140 | 115 | 165 | 140 | 115 | 48 | 13 | 200 | 140 | 145 | 110 | 85 | 16 | 3 | 4-18 | |
50 | 2 | 175 | 140 | 115 | 175 | 140 | 115 | 61 | 14 | 230 | 140 | 160 | 125 | 100 | 16 | 3 | 4-18 | |
CS17H-25 CS47H-25 CS67H-25 | 15 | 1/2 | 100 | 92 | 82 | 100 | 92 | 82 | 22 | 12 | 150 | 92 | 95 | 65 | 45 | 14 | 2 | 4-14 |
20 | 3/4 | 100 | 92 | 82 | 100 | 92 | 82 | 27 | 12 | 150 | 92 | 105 | 75 | 55 | 14 | 2 | 4-14 | |
25 | 1 | 100 | 92 | 82 | 100 | 92 | 82 | 34 | 12 | 160 | 92 | 115 | 85 | 65 | 14 | 2 | 4-14 | |
32 | 11/4 | 165 | 140 | 115 | 165 | 140 | 115 | 42 | 13 | 200 | 140 | 135 | 100 | 78 | 16 | 2 | 4-18 | |
40 | 11/2 | 165 | 140 | 115 | 165 | 140 | 115 | 48 | 13 | 230 | 140 | 145 | 110 | 85 | 16 | 3 | 4-18 | |
50 | 2 | 175 | 140 | 115 | 175 | 140 | 115 | 61 | 14 | 230 | 140 | 160 | 125 | 100 | 16 | 3 | 4-18 | |
CS17H-40 CS47H-40 CS67H-40 | 15 | 1/2 | 100 | 92 | 82 | 100 | 92 | 82 | 22 | 12 | 250 | 92 | 95 | 65 | 45 | 14 | 2 | 4-14 |
20 | 3/4 | 100 | 92 | 82 | 100 | 92 | 82 | 27 | 12 | 150 | 92 | 105 | 75 | 55 | 14 | 2 | 4-14 | |
25 | 1 | 100 | 92 | 82 | 100 | 92 | 82 | 34 | 12 | 160 | 92 | 115 | 85 | 65 | 14 | 2 | 4-14 | |
32 | 11/4 | 165 | 140 | 115 | 165 | 140 | 115 | 42 | 13 | 200 | 140 | 135 | 100 | 78 | 16 | 2 | 4-18 | |
40 | 11/2 | 165 | 140 | 115 | 165 | 140 | 115 | 48 | 13 | 200 | 140 | 145 | 110 | 85 | 16 | 3 | 4-18 | |
50 | 2 | 175 | 140 | 115 | 175 | 140 | 115 | 61 | 14 | 230 | 140 | 160 | 125 | 100 | 16 | 3 | 4-18 |
