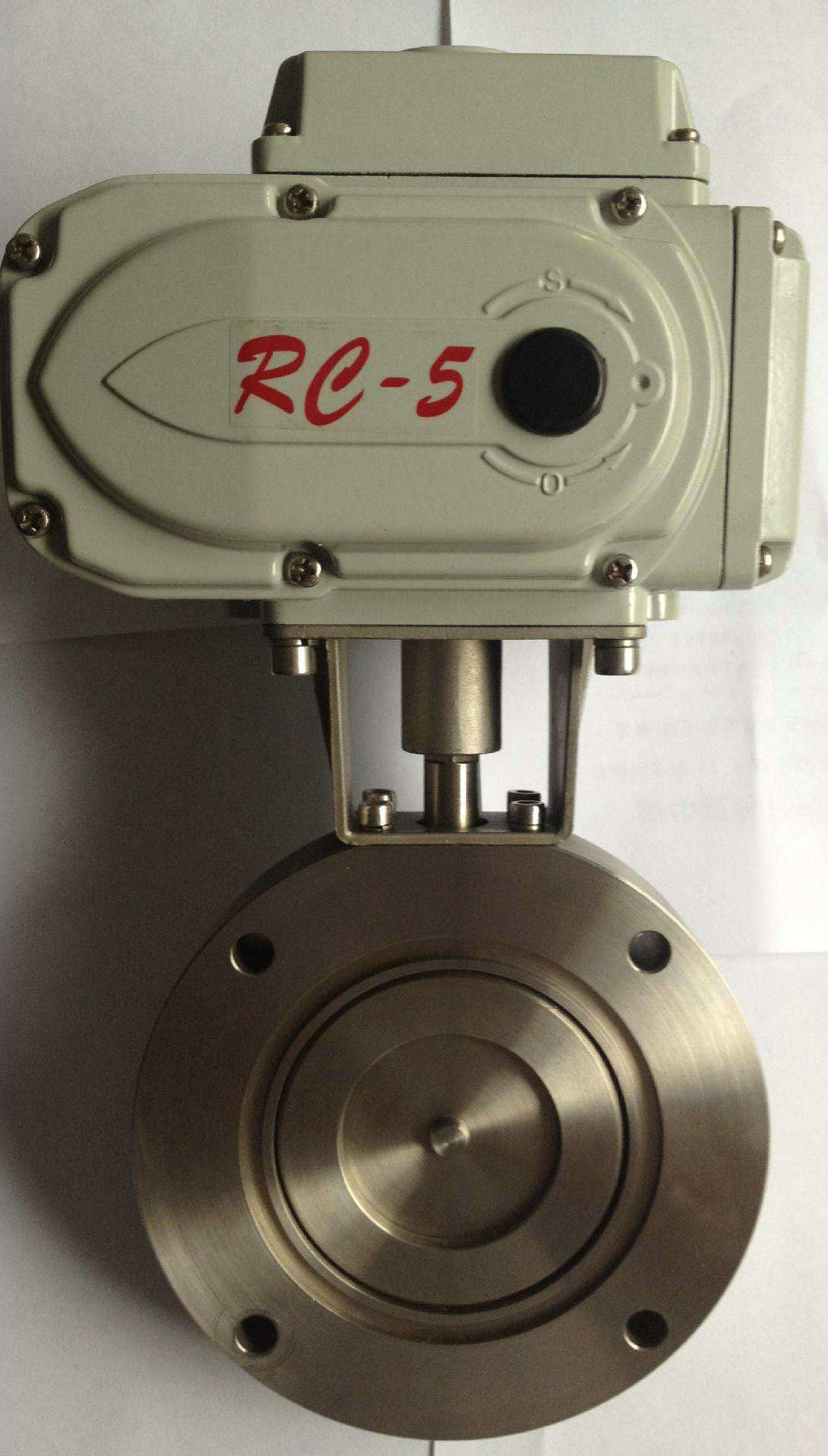

GID型電動高真空蝶閥

產品名稱：日韓豐滿少婦無碼內射:GID型電動高真空蝶閥
產品型號：GID型
產品口徑：DN25-400mm
產品壓力：負壓
產品材質：不銹鋼
聯系電話：021-51061127
聯系傳真：021-51062214
Email：fashengfamen@126.com
聯系人：陳云非
聯系手機：18217570461
QQ：203398752
公司名：上海閥盛閥門制造有限公司
帳號：03416900040048386
開戶行：農行上海水清南路支行
售后承諾：質保一年，質量三包：包修、包換、包退。

上海閥(fa)(fa)盛(sheng)閥(fa)(fa)門制造有(you)限公司主要生(sheng)產GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)，可提供GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)價格，GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)說明(ming)書，GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)實物圖，GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)結(jie)構圖，GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)外形尺寸，GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)執行標準，GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)工作原(yuan)理，GID型(xing)(xing)電(dian)(dian)(dian)動(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)(kong)(kong)蝶閥(fa)(fa)作用特點。

GID型電動高真空蝶閥采用回轉型電動、電子調節式閥門驅動裝置，可以通過外接電源的切換(用手動轉位開關或電腦控制)或外部輸入信號，來實現閥門開、關或中間位置的控制，從而達到接通或切斷真空管路中氣流的目的。適用于工作介質為空氣和非腐蝕性氣體。

GID型電動高真空蝶閥主要技術性能

適用范圍(Pa)	10⁵～1.3x10^-5
閥門漏率(Pa.L/S)	≤1.3x10^-6
開閉時間(S)	DN≤63 20；80≤DN≤200 30； DN≥250 48
介質溫度（℃）	-25～+80(密封材料為丁腈橡膠) -30～+150(密封材料為氟橡膠)
法蘭標準	JB919
安裝位置	任意
控制電路	標準出廠：AC220V/50Hz開關型特殊指定：AC380V；DC24V開關型 4～20mA DC
信號反饋	標準出廠：帶無源觸點型特殊指定：4～20mA DC調節型

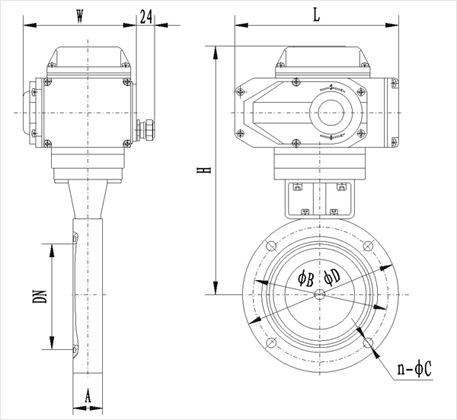

GID型電動高真空蝶閥連接及外形尺寸

型號	通徑(DN)	ΦD	ΦB	H	A	L	W	n-ΦC
GID-25	25	70	55	177	22	160	113	4-Φ7
GID-32	32	78	64	182
GID-40	40	85	70	186
GID-63	63	130	110	229	26			4-Φ9
GID-80	80	145	125	273	30	196	121	4-Φ9
GID-100	100	170	145	285	30			4-Φ12
GID-125	125	195	170	299	35			4-Φ12
GID-150	150	220	195	368	35	255	158	8-Φ12
GID-200	200	275	250	394	40
GID-250	250	330	300	426	45
GID-300	300	380	350	449	55			8-Φ14
GID-400	400	500	465	538	60	310	207	8-Φ18
